Engine Strating System (Requied by NFPA)
When the automatic control circuit fails and the storage battery of the main circuit and the starting motor are in good condition, Battery Contactors can be used to start the diesel engine fire pump mechanically (directly connect the storage battery with the starting motor electrically).
As part of SinoMac, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
If you are in need of pump model that not available on our website for the moment, please contact SinoMac sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at UL-listed.com.
Engine Strating System
Which sometimes engine can have start up problem because of flat batteries or damaged batteries, so NFPA20 standard required engine starting system should have A1: Two Sets of Batteries and comes together with control device.
Engine Strating System
Electronic Control box should be able to start engine, if failure with start, should able to use manual mode, which well-know as “CHECK 1” & “CHECK 2”.
Engine Strating System

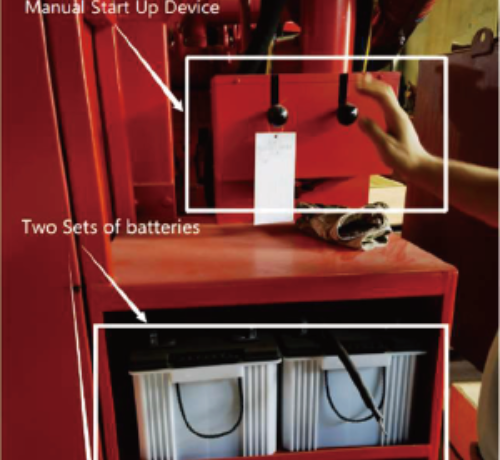

In the condition that the control box failure (Such as wiring harness damaged), should able to start engine manually, which is A2: Manual Start Up Device required to achieve this function.
NOTE!
Manual Start Up Device can ensure engine start without using engine control box, it’s a emergency device to ensure the start up of engine.
Engine Strating System
Meanwhile, due to you have two sets of batteries, so A3: Two Sets of Battery Charges are required (Normally inside of water pump control panel).
PumpMac Battery Contactors Products Type
| Model | SY-BC12-400 | SY-BC24-400 | SY-BC24-500 | SY-BC24-600 | SY-BC24-800 |
|---|---|---|---|---|---|
| Rated working (load)current | 400A | 400A | 500A | 600A | 800A |
| Rated working (load)voltage | 12V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Control coil voltage | 12V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Adapted starting motor power | ≤4.5kW | 24V DC | 24V DC | 24V DC | 24V DC |
| Intermittent working system: Short-time duty 30s (suitable for starting ≤20s, pause 20s, and cyclic operation) | |||||
