6BT5.9-P130-FP Pump Engine

DCEC 6BT5.9-P130-FP Fire Pump engine is a 6-cylinders in line, 5.9 liters four-strokes engine with 102 mm bore and 120 mm stroke. Equipped with mechanical fuel pump and electronic governor, comes with turbocharger.

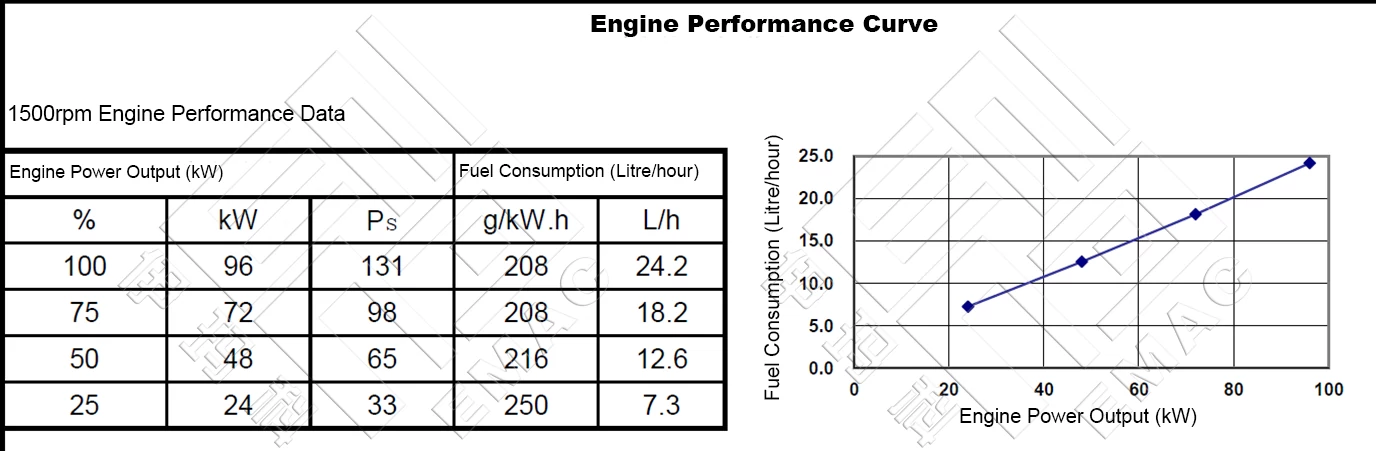

The prime power at 1500 RPM of DCEC 6BT5.9-P130-FP pump engine is 96 kW.

As part of EMAC, PumpMac provides abundant premium fire-fighting pump power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set.

We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of DCEC 6BT5.9-P130-FP Pump Engine

• Compared with similar models, fewer parts and fewer operating failures significantly reduce the overall maintenance cost of the engine, and shorten the maintenance time by 50 %.

• Platform honing cross hatch cylinder hole, perfect geometric structure, effectively prevent oil leakage, advanced technology, such as new piston ring assembly and gasket crimping protection, reduce oil loss.

• The intake air preheating device and the 6.6 kW high-power starter greatly improve the cold start performance of the engine. Passed the -36 °C test in the Arctic Village Mohe at extremely low temperatures.

• The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.

• The size of the engine is smaller than that of the same type of engine, the maintenance space is large, and the maintenance is faster.

• Strong interchangeability, more convenient equipment upgrades.

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
